• 20" x 9" chrome clad aluminum wheels
• P275/60R20 all-season BSW tires
• (4) full-size conventional doors
• Locking lug nuts
• 17" steel spare wheel
• Full-size temporary use spare tire
• Tire carrier winch
• Bright front bumper
• Front bumper sight shields
• Bright rear bumper
• Body-color upper front fascia
• Accent fender flares
• Bright/bright grille
• Automatic headlamps
• Quad beam halogen headlamps
• Fog lamps
• Underhood lamp
• Chrome folding pwr heated auto-dimming outside mirrors -inc: memory, courtesy lamps, turn signals
• Deep tinted windows
• Pwr sliding rear window
• Variable intermittent windshield wipers
• Cargo lamp
• Body-color/chrome door handles
• Front license plate bracket
• Locking tailgate
• Body color fuel filler door

• Media center 430 -inc: AM/FM stereo w/CD/MP3 player, USB port, 30GB hard drive w/6700 song capacity, 6.5" touch screen display
• Audio jack input for mobile devices
• SIRIUS satellite radio -inc: 1-year radio service *SIRIUS radio service may not be available in some areas*
• (9) amplified speakers w/subwoofer
• Fixed long mast antenna
• UConnect hands-free communication w/voice command

• Leather trim 40/20/40 bench seat
• 10-way pwr driver seat w/memory & 6-way pwr passenger seat
• Pwr lumbar
• Heated front seats

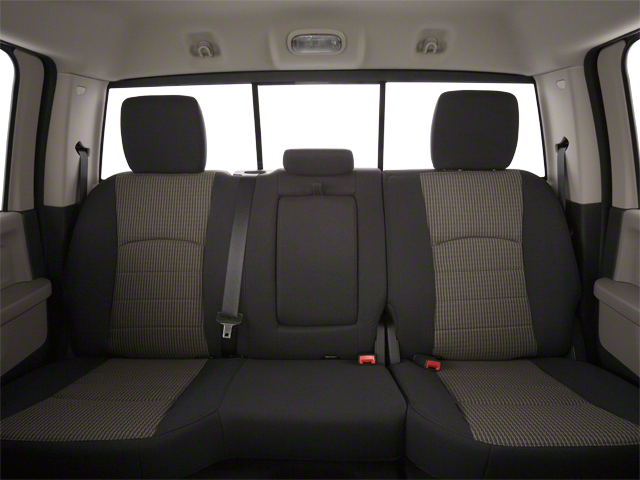

• 60/40 split-fold rear bench seat

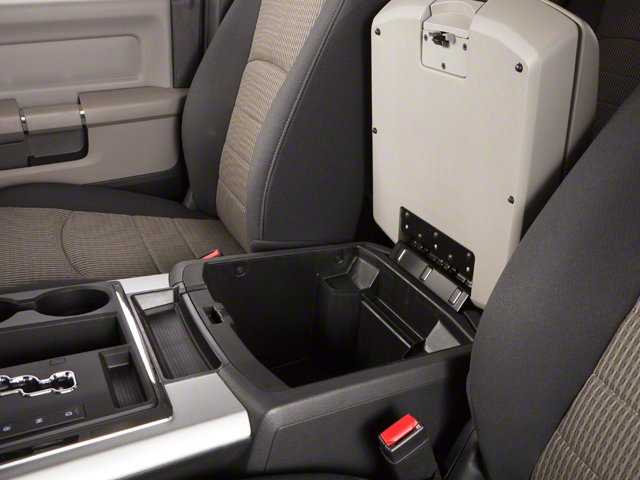

• Front center seat storage cushion
• Carpeted floor covering
• Front/rear floor mats
• Floor tunnel insulation

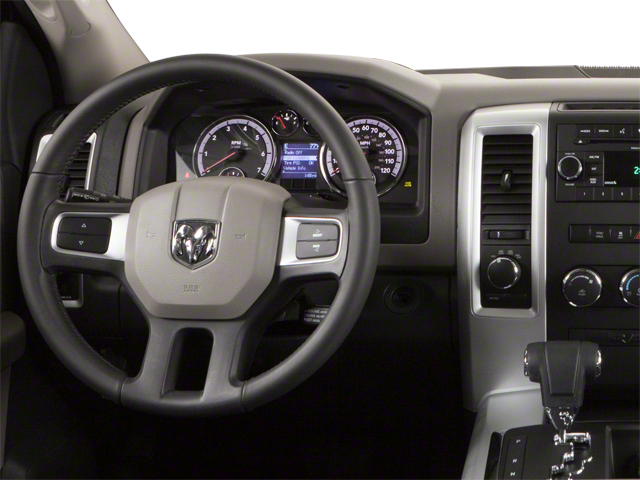

• Leather-wrapped steering wheel
• Steering wheel audio controls
• Heated steering wheel
• Tilt steering column

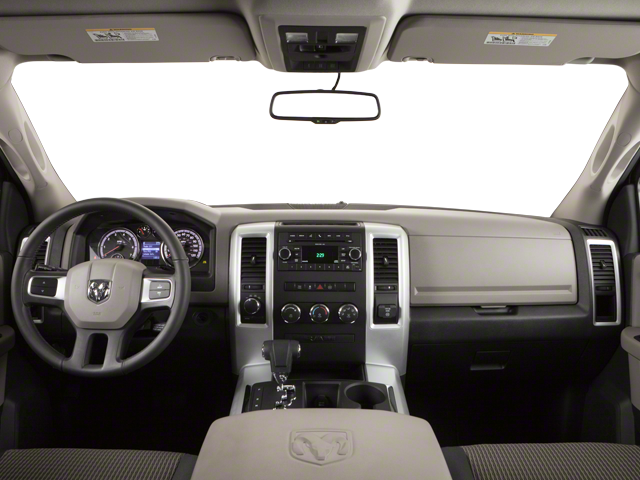

• Instrument cluster w/display screen -inc: temp & compass gauge, trip computer, vehicle info center
• Speed control
• Pwr front windows w/1-touch up/down
• Pwr door locks
• Pwr adjustable pedals w/memory
• Pwr accessory delay
• Remote keyless entry
• Universal garage door opener w/controls on the overhead console
• Sentry Key theft deterrent system
• Security alarm system
• Automatic air conditioning w/dual zone temp controls

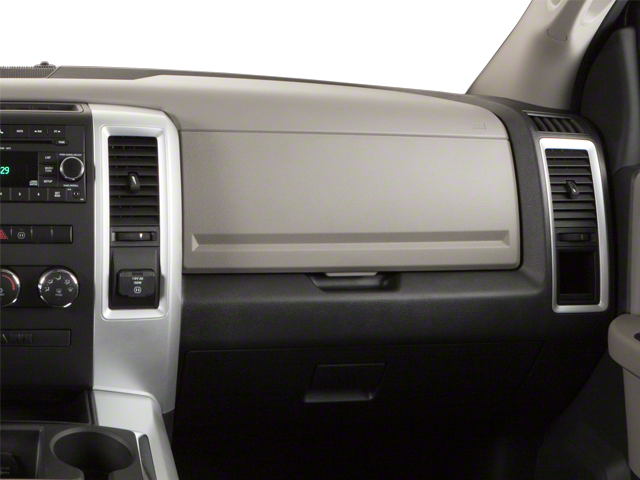

• Woodgrain instrument panel bezel
• 12V aux pwr outlet
• 115V aux pwr outlet
• Deluxe door trim panels
• Auto-dimming rearview mirror
• Overhead console
• Dual assist handles
• Illuminated visor vanity mirrors
• Rear dome lamp w/on/off switch

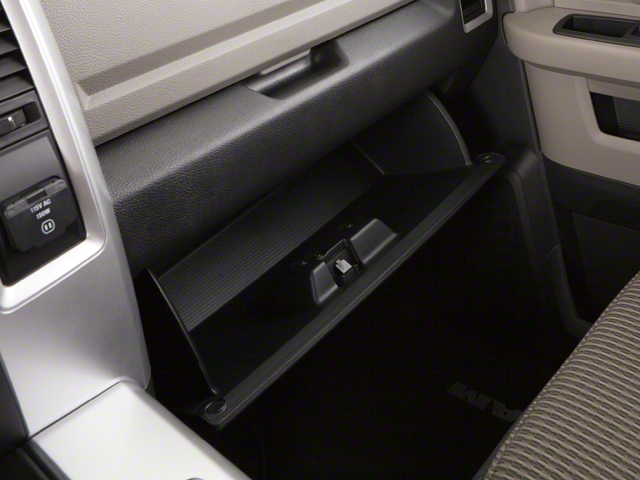

• Glove box lamp
• Ash tray lamp
• Column-mounted shifter
• Chrome accent shift knob
• Rear under seat storage compartment
• Storage tray
• 2nd row in-floor storage bins

• Brake assist
• Electronic stability program
• Driver/front passenger multistage airbags
• Front seat side-impact airbags
• Front/rear side curtain airbags
• Front seat belt height adjusters
• Child safety door locks
• ParkSense rear parking assist system
• Tire pressure monitor w/display
• Dual note horn

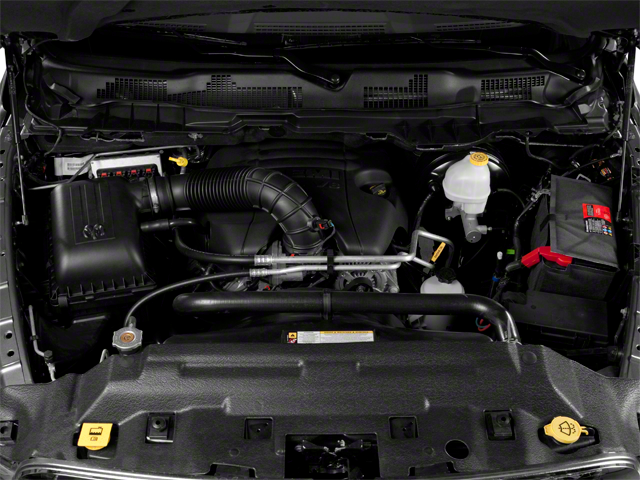

5.7L V8 HEMI MULTI-DISPLACEMENT VVT ENGINE

• (STD)

• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 700
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 3170
• Curb Weight - Rear (lbs): 2368
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8350
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1253
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-link coil
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Rear: Solid
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 3900
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.8 x 0.87
• Tires
• Front Tire Order Code: TTJ
• Rear Tire Order Code: TTJ
• Spare Tire Order Code: TBS
• Front Tire Size: P275/60R20
• Rear Tire Size: P275/60R20
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: Variable
• Steering Ratio (:1), At Lock: 3.3
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 229.0
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 75.7
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 152.6
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6

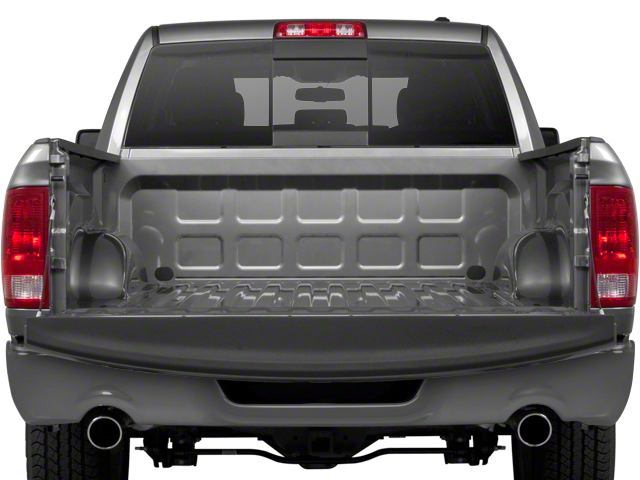

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.4
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 50.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.9
• Second Leg Room (in): 40.3
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary

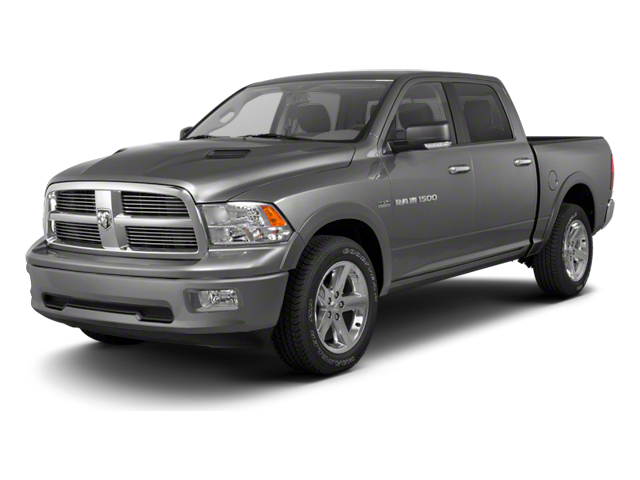

• Vehicle Name: Ram 1500
• Body Style: Crew Cab 5.7' Bed
• Body Code: 140.5" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
